The “Swiss Army Knife”-Solution in a Highly Versatile yet Small Wet-Processing Tool
In semiconductor manufacturing, progress is rarely about a single breakthrough - it’s about refining every process step to perfection. Wet processing plays a decisive role in determining yield, surface quality, and ultimately device performance.
With the latest Revolution+ release, RENA Technologies introduces a system that brings together automation, flexibility, and compact design - tailored especially for modern compound semiconductor applications like SiC cleaning or GaN and InP etching. This article explores where the Revolution+ fits into today’s manufacturing landscape.

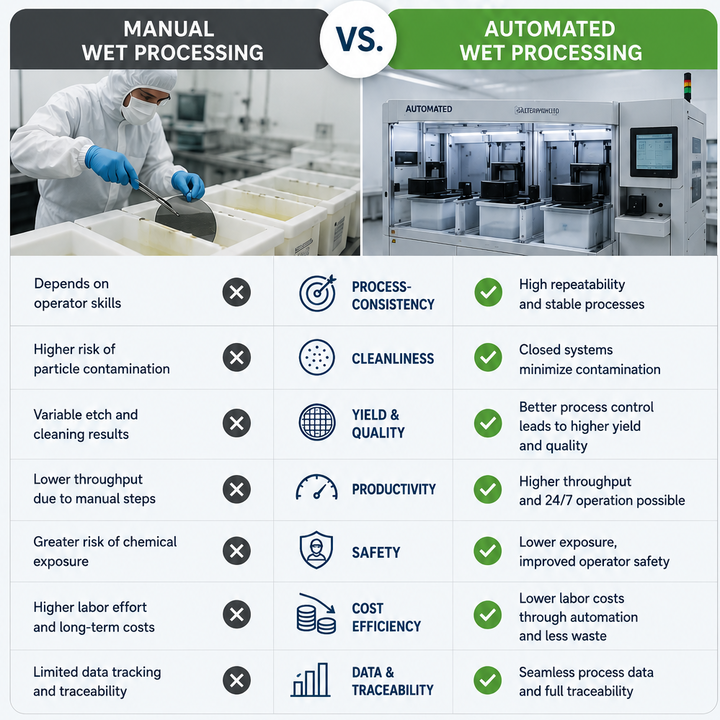

Automatic Semiconductor Processing vs Manual Operation
If you walk into a semiconductor lab or fab, you’ll quickly notice that not all wet benches are created equally. Traditionally, manual systems dominated research environments. Operators would physically move wafer carriers from bath to bath. Flexible, yes, but also highly dependent on human precision, not to mention the achievable throughput.
In contrast, automated wet benches have become the standard in advanced environments. These systems handle wafer transport, timing, and chemical exposure with minimal to no human interaction, ensuring repeatability and reducing contamination. According to general semiconductor manufacturing practices and industry overviews, automation is key to achieving consistent high yields in modern fabs.

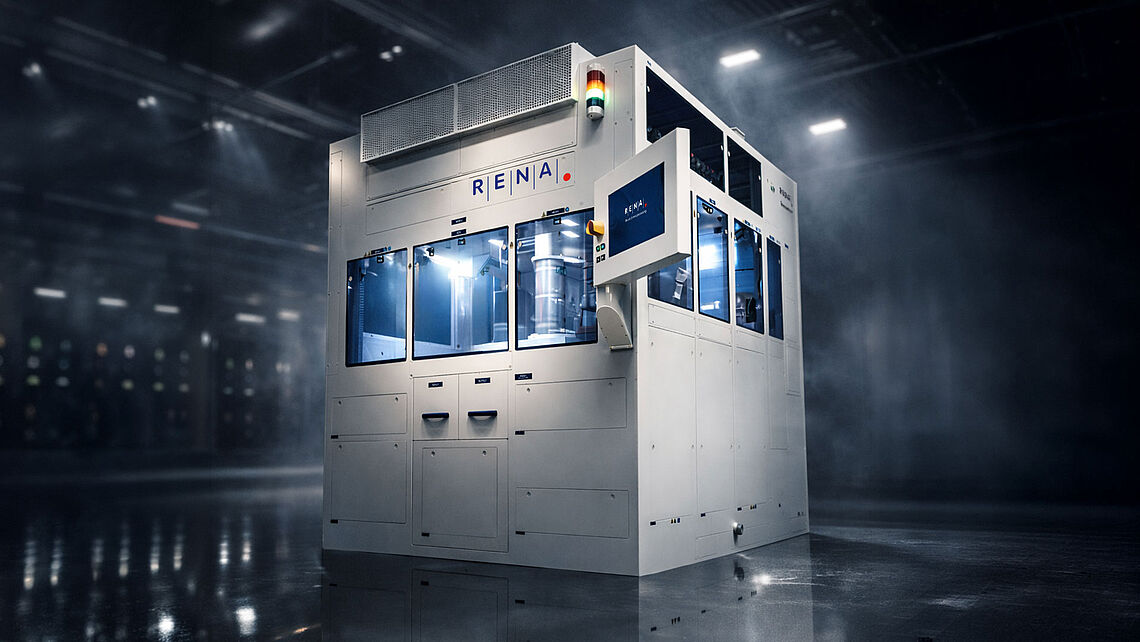

This is exactly where the Revolution+ positions itself. It is a compact yet fully automated immersion wet bench, designed to execute multi-step processes reliably without manual intervention. It integrates wafer handling and process control into one compact system.
But automation is only half the story. The layout of the system matters just as much.

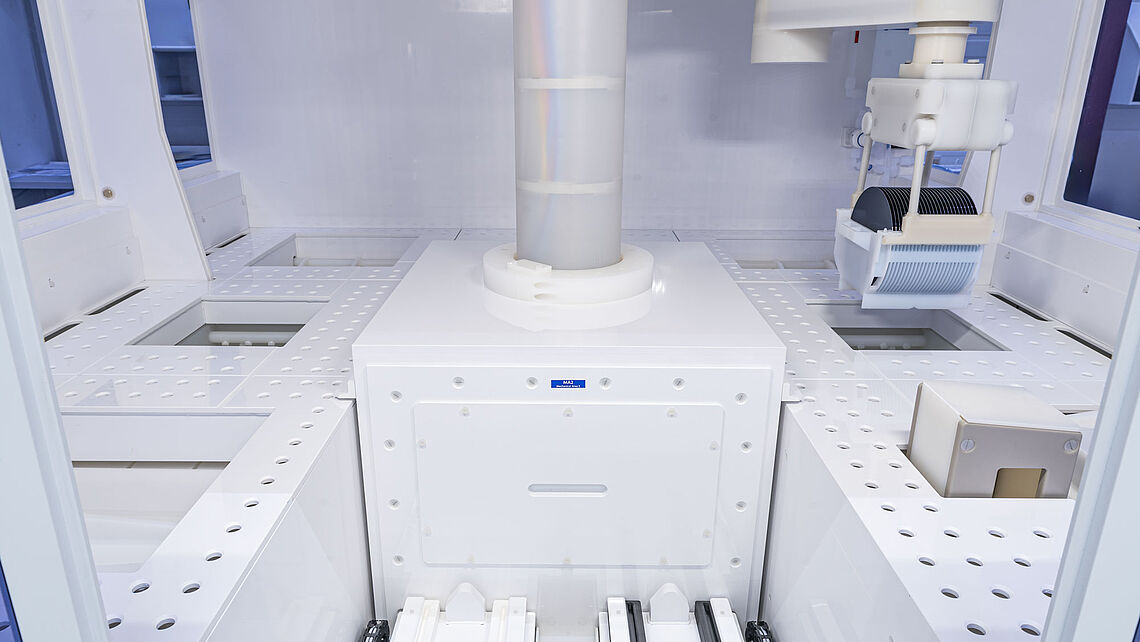

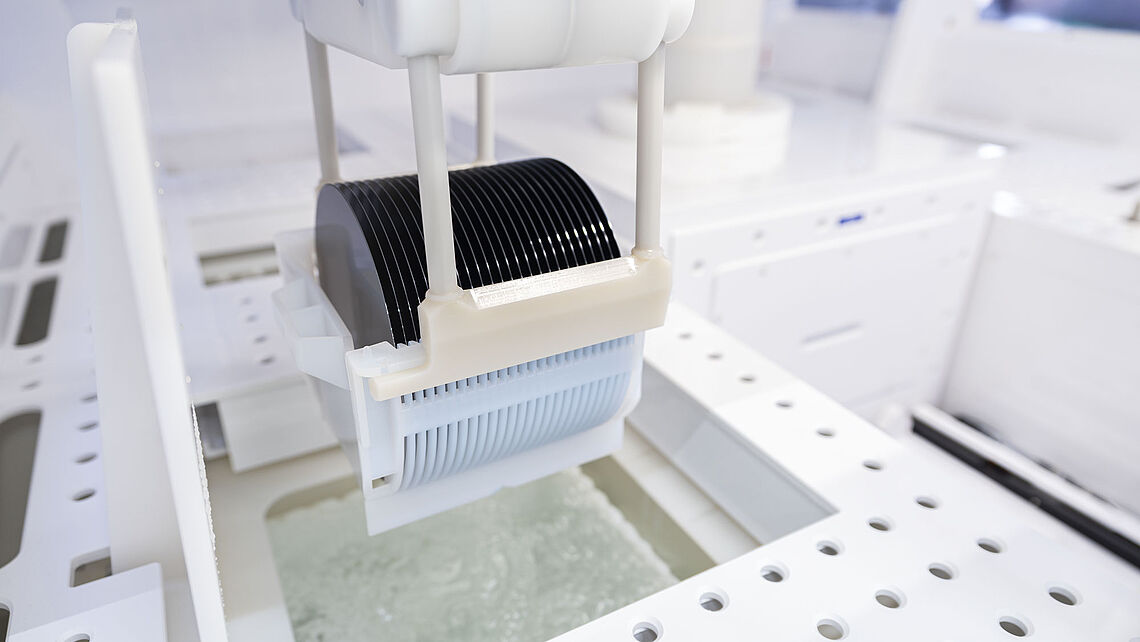

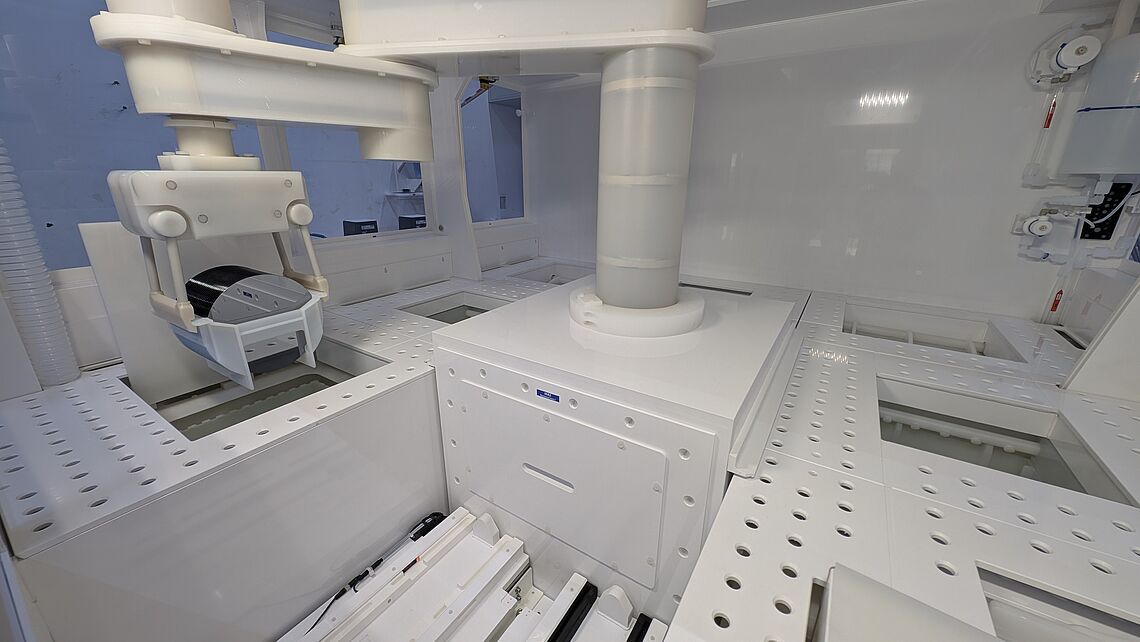

Wet processing systems often follow a linear arrangement, where tanks are placed in a row and wafers move step-by-step along the line. The Revolution+, however, adopts a circular (rotary) design, where process baths are arranged around a central handling unit. This central robot transfers wafers efficiently between tanks, reducing travel distance and even more importantly saving valuable cleanroom space.
Wafer size is one of those factors that defines an entire production ecosystem. While 300 mm wafers dominate high-volume silicon manufacturing, 150 mm and 200 mm wafers remain highly relevant, especially in the compound semiconductor sector.
The Revolution+ is designed specifically for these sizes, supporting 150 mm and 200 mm wafers. This makes it particularly attractive for compound semiconductor production, pilot production lines, R&D facilities, and niche manufacturing. Flexible tank configurations allow for different wet etching scenarios like cleaning of SiC, InP, GaN, GaAs or Etching of GaAs, GaN, InP or Ge including rinsing and advanced drying.
Application Fields of 200 mm Wet Benches
The continued importance of 200 mm platforms is closely tied to the rise of compound semiconductors. Unlike mainstream silicon CMOS, these materials enable entirely different applications.
Take photonics, for example. Devices such as lasers and photonic integrated circuits rely on materials like indium phosphide (InP). Device performance in this area is highly sensitive to surface contamination, roughness, and process-induced damage which in turn requires highly controlled wet processing steps.
The Revolution+ is designed with these applications in mind, supporting precisely these kinds of materials and process requirements.

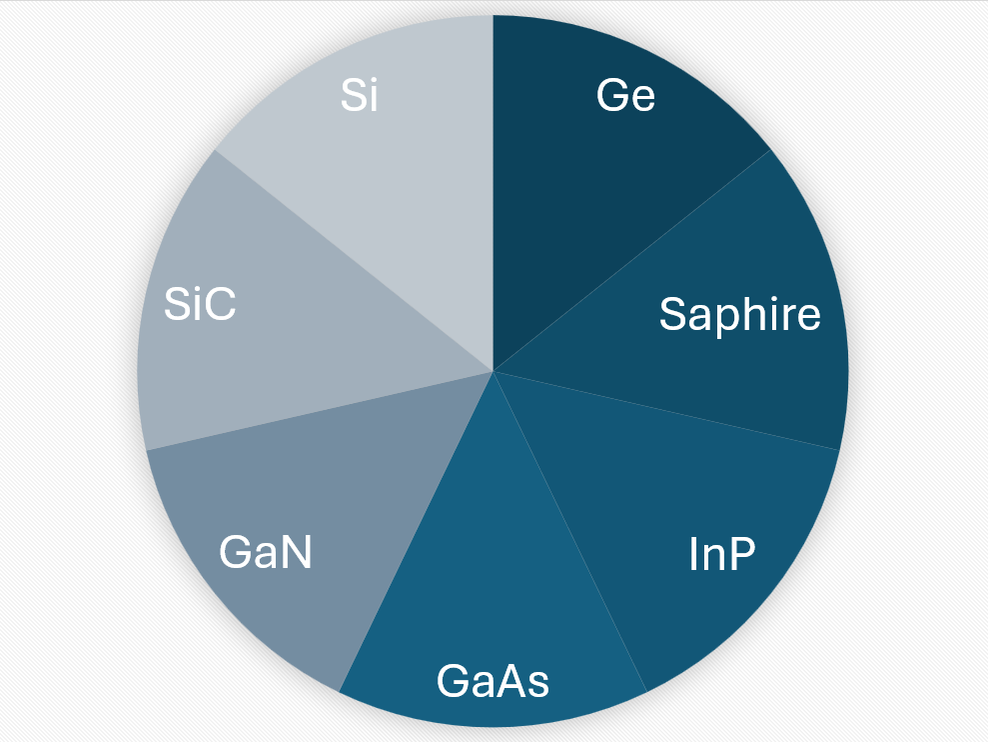

A platform needs to be capable of processing silicon (Si) for traditional devices in one setup, SiC or GaN in another setup for power electronics or even GaAs or InP for RF and photonics in a third configuration. Add materials like germanium, sapphire, or glass, and the complexity quickly increases.
The Revolution+ provides a solution for all those requirements, allowing users to run their individual processes and a wide range of substrates without compromising quality. Flexibility is a key aspect of the Revolution+ platform and makes it fit in not only in terms of small footprint but also the ideal process solution.

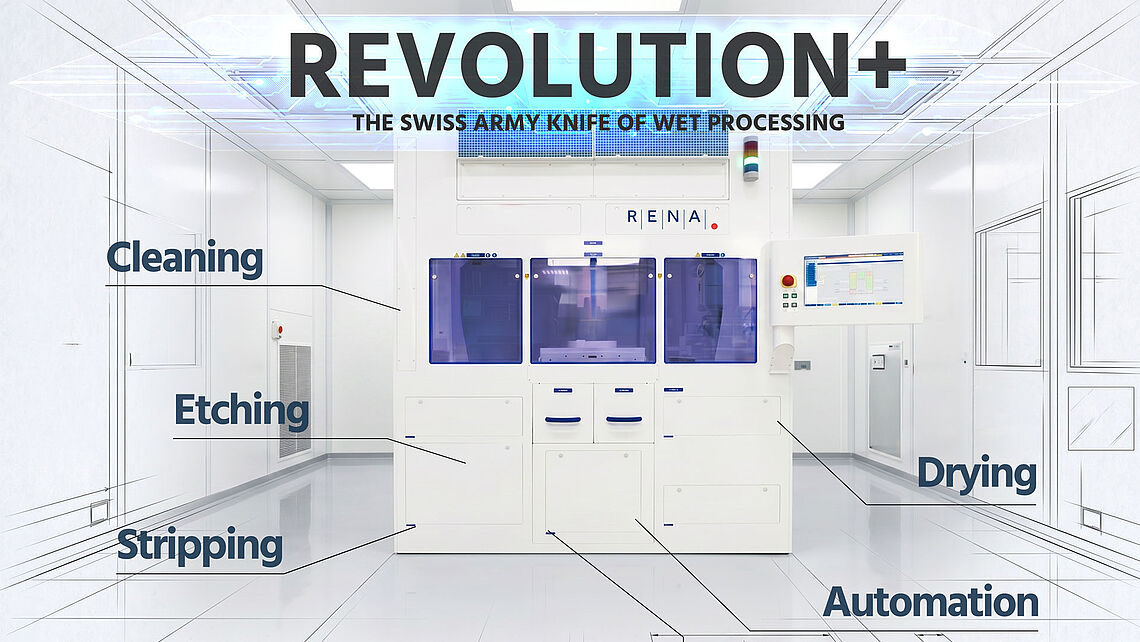

Revolution+ | The “Swiss Army Knife” of Semiconductor Wet Processing
A Compact Powerhouse for fully automated fab environments

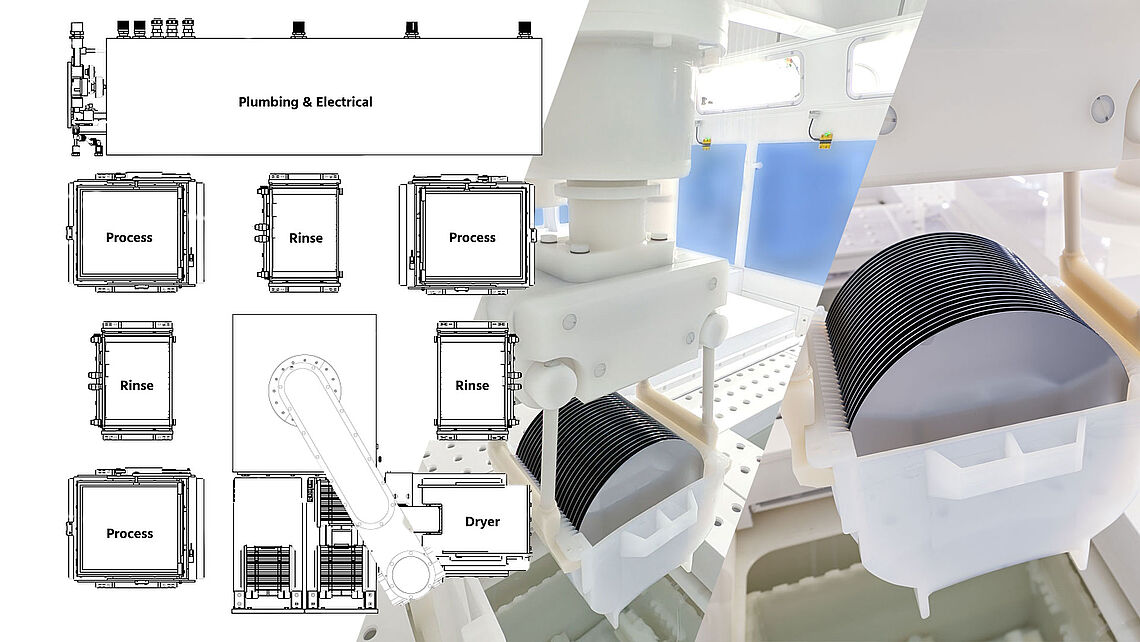

The highly versatile tool platform can handle multiple critical steps within a single platform and adapt perfectly to the customers’ needs. Up to 3 process baths, 3 rinses and a dryer can be configured as well as the automation grade, the wafer sizes and the cleanroom mini environment.

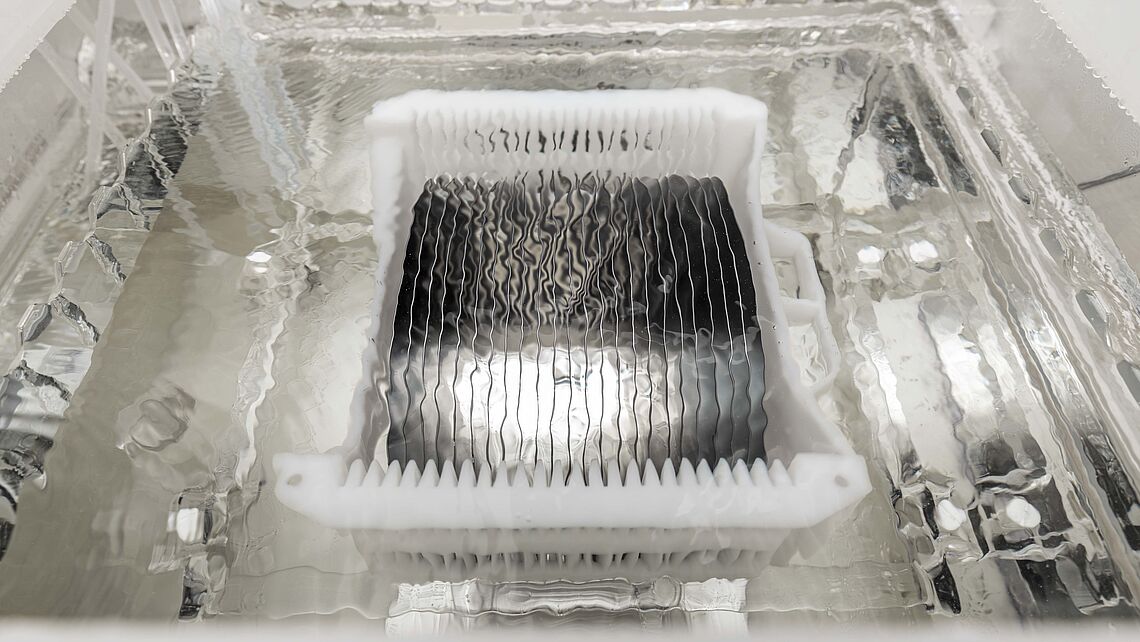

Cleaning, for instance, is fundamental to removing particles and residues. Even microscopic contamination can lead to device failure, making this step essential in both front-end and back-end processes.
Etching, on the other hand, is about precision - removing specific layers or structures with chemical selectivity. Wet etching remains a cost-effective and reliable method for many applications, especially in compound semiconductor processing.
For more advanced workflows, metal lift-off processes come into play. These are crucial in photonics and microelectronics, where precise patterning of metal layers is required.
Finally, drying ensures that wafers leave the system free of watermarks and particles. The Revolution+ includes integrated drying capabilities, enabling a “dry-in, dry-out” process flow - making use of the built in Genesis X2 – Marangoni-dryer for perfect results.
Revolution+ enables the following fully automated multi-step batch immersion processes:
FEOL, BEOL Resist Strip
RCA Clean
InGaP-GaAs Etch
SiC-Clean
InP-Clean
Post CMP Clean
Prediffusion Clean
Oxide Etch
SWP Clean
Nitride Etch
Benefits of the Revolution+
What makes the Revolution+ particularly compelling is how it combines several advantages into one system.
- Its compact footprint is a major benefit, especially in cleanrooms where space is both limited and expensive. At the same time, the automated handling system ensures consistent processing, reducing operator influence and improving yield.
- Another important aspect is resource efficiency. Modern wet benches like Revolution+ are designed to minimize chemical consumption and water usage - both for cost reasons and environmental considerations.
- Perhaps most importantly, the system is modular and adaptable, allowing it to be configured for different applications and wafer materials - from research labs to small-scale production environments.
Conclusion
The semiconductor industry is becoming increasingly diverse, with new materials, applications, and process requirements emerging every year. In this environment, flexibility is no longer optional - it’s essential.
The Revolution+ meets this challenge by offering a compact, automated, and highly versatile wet processing solution. Its circular design, support for multiple wafer sizes and materials, and ability to handle a wide range of processes make it a valuable tool for both R&D and production.
By combining insights from general semiconductor manufacturing practices with specific details from RENA’s official product information, one thing becomes clear: Revolution+ is not just another wet bench - it’s a platform designed for the future of semiconductor processing.
